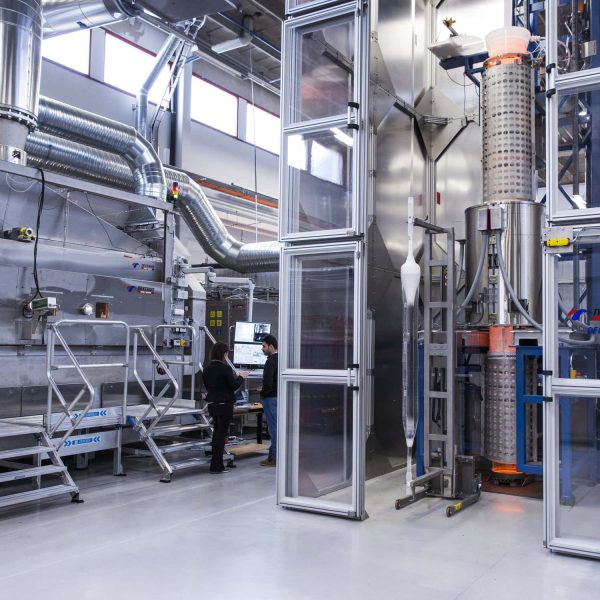

The Welding Lathe is designed for high-precision welding and consolidation of quartz rods and tubes used in optical fiber manufacturing. The system ensures uniform joint quality and maintains structural integrity during high-temperature welding.
The vertical configuration allows controlled traction and alignment, supporting both short and long rods while maintaining diameter consistency and minimizing defects.
Optimized for industrial production, the system offers:
Precise welding of rods and tubes
Direct-drive or continuous traction methods
Mechanical and electrical synchronization options
The Welding Lathe operates by heating and consolidating quartz rods or tubes under controlled vertical alignment. This process ensures a strong, uniform bond and maintains material quality for subsequent processing steps.
Input rods or tubes with diameters ranging from 90–130 mm can be processed, producing output rods of 50–80 mm in diameter and lengths up to 9 meters. The system accommodates different product sizes and requirements, providing flexibility for various optical fiber applications.
Traction is applied via direct-drive or continuous drawing methods, with synchronization options available for precise control. This ensures smooth movement and consistent welding along the rod’s axis.
The vertical multi-tier frame structure provides mechanical stability and supports long-duration operation at high temperatures. Operator controls allow adjustment of speed, traction, and welding parameters for repeatable results.
Integration with upstream sintering and deposition equipment or downstream elongation systems is straightforward, forming part of a complete quartz rod production line.
Rod / Tube Parameters
Input Rod Diameter: 90–130 mm
Maximum Input Length: 1.3 m
Output Rod Diameter: 50–80 mm
Maximum Output Length: 9 m
Traction & Synchronization
Traction Method: Direct-drive or continuous drawing
Synchronization: Mechanical or electrical
Mechanical Structure
Total Frame Height: ~15 m
Total Weight: ~13 tons
Vertical orientation for stable welding and elongation
Ensures uniform joint quality and consistent material properties.
Supports direct-drive or continuous traction with mechanical or electrical synchronization.
Accommodates rods and tubes with diameters suitable for various optical fiber applications.
Robust vertical frame ensures safe, stable, and long-duration operation.
What types of rods can be welded?
Input rods 90–130 mm in diameter can be processed into output rods 50–80 mm in diameter, up to 9 meters long.
Which traction methods are supported?
Direct-drive and continuous drawing methods are supported for flexibility and precision.
How is synchronization achieved?
Synchronization can be mechanical or electrical, depending on production requirements.
Can this equipment be integrated with other systems?
Yes, it integrates with upstream sintering/deposition and downstream elongation equipment.
What advantages does the vertical configuration provide?
Vertical orientation ensures stable welding, uniform joints, and reduced mechanical stress during operation.
